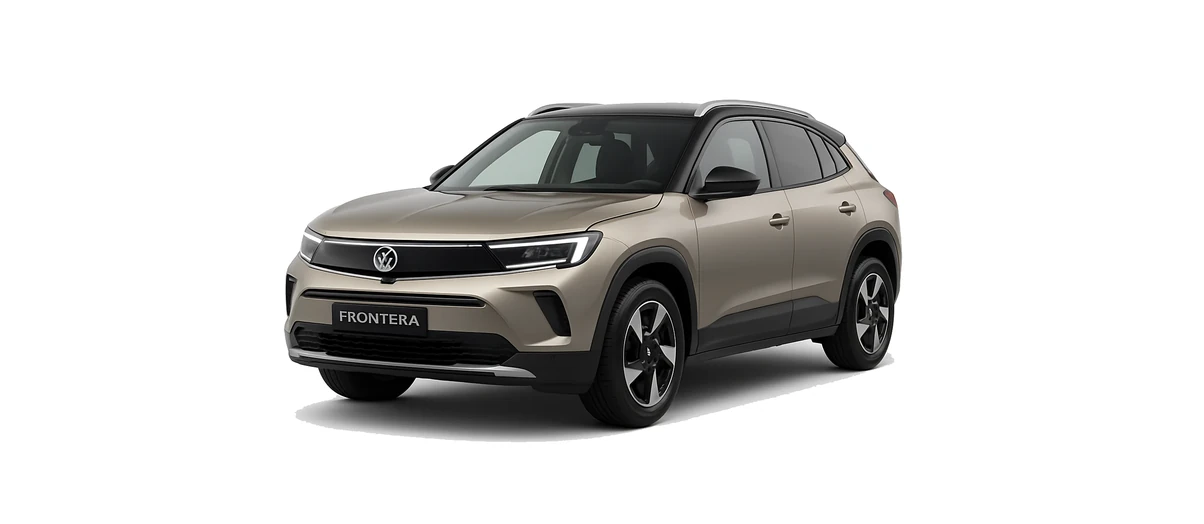

Vauxhall Frontera Charging Guide: Home Charging, Public Charging and Cable Selection

The Vauxhall Frontera is back in the UK as a practical compact family SUV, but it is important to separate the plug-in and non-plug-in versions. The model range includes the Frontera Electric, which is a fully electric vehicle, and 48V petrol hybrid versions, which are not plug-in hybrids and do not use charging cables.

This guide focuses on the Vauxhall Frontera Electric. It covers the two battery choices, realistic UK home charging expectations, public charging, rapid charging and how to choose a suitable cable. The key point for most owners is that the Frontera Electric has a standard 11kW three-phase AC on-board charger, which is useful at compatible public AC charge points, but most UK home charging will still be planned around a 7kW or 7.4kW single-phase wallbox.

View Vauxhall Frontera Charging Cables

Vauxhall Frontera Battery and Charging Specifications

The UK Vauxhall Frontera Electric uses a Type 2 connection for AC charging and a CCS Combo 2 connection for DC rapid charging. This is the standard arrangement for most modern electric cars in the UK and Europe: the upper Type 2 section is used for home and destination charging, while the full CCS inlet is used with high-power DC rapid chargers.

Vauxhall information confirms an 11kW three-phase on-board AC charger. DC rapid charging is rated at up to 100kW, meaning the vehicle can use rapid and ultra-rapid CCS chargers, but it will not charge above the car’s own maximum charging capability.

Item	Vauxhall Frontera Electric
Charging port	Type 2 AC / CCS Combo 2 DC
AC charging capability	Up to 11kW three-phase
Typical UK home charging	Usually 7kW or 7.4kW single-phase
DC rapid charging	Up to around 100kW
Charging flap location	Passenger side
Delayed charging	Supported

Battery Options

The Frontera Electric is available in the UK with two battery choices. The standard battery is commonly described as 44kWh, while the larger Extended Range version is 54kWh. Usable battery figures vary slightly by source, but EV Database UK lists around 43.8kWh usable for the 44kWh version and an estimated 53.5kWh usable for the 54kWh version.

The 44kWh Frontera Electric is the lower-cost option and is likely to suit drivers with regular access to home charging and predictable daily mileage. Official WLTP range is generally quoted at around 186 to 190 miles depending on trim and source, while EV Database gives a real-world estimate of about 145 miles.

The 54kWh Extended Range model is aimed at drivers who want a larger buffer between charges. Vauxhall has quoted up to 253 miles WLTP for some Extended Range versions, although lower figures apply to certain trims and sources. EV Database estimates typical real-world range at about 180 miles.

AC Charging Speed

AC charging is what you use at home, at many workplace charge points and at public destination chargers such as those found in car parks, hotels and some retail locations. The Frontera Electric’s standard 11kW on-board charger is a useful feature because it allows faster AC charging where a three-phase supply is available.

Vauxhall’s official 20-80% AC charging figures are helpful for planning. For the 44kWh car, Vauxhall quotes about 2 hours 55 minutes on 11kW AC, or about 4 hours 10 minutes on a 7.4kW wallbox. For the 54kWh Extended Range version, the figures are about 3 hours 25 minutes on 11kW AC, or about 5 hours 05 minutes on a 7kW wallbox.

For full 0-100% charging, independent estimates are longer, as expected. EV Database suggests around 7 hours on 7.4kW or 4 hours 45 minutes on 11kW for the 44kWh model, and around 8 hours 30 minutes on 7.4kW or 5 hours 45 minutes on 11kW for the 54kWh model.

In practice, many UK homes have single-phase electricity, so a 7kW or 7.4kW home wallbox is the realistic default. The 11kW capability is most useful if you have three-phase at home, at work, or when using compatible public AC charge points.

DC Rapid Charging Speed

For longer journeys, the Frontera Electric uses CCS DC rapid charging. The vehicle is rated at up to around 100kW, so it can connect to rapid chargers rated at 100kW or higher. Using a 150kW or 350kW ultra-rapid charger will not force the car to charge faster than its own limit, but these chargers can still be convenient where available.

Vauxhall’s official rapid-charging figures are quoted from 20-80%: about 26 minutes for the 44kWh battery and about 28 minutes for the 54kWh battery. For a typical 10-80% rapid-charge session, EV Database estimates around 31 minutes for the 44kWh model and around 34 minutes for the 54kWh model.

As with any EV, peak charging speed is not held for the whole session. The car charges fastest when the battery is at a suitable temperature and state of charge, then slows as it gets fuller. Cold weather, charger load, battery temperature and site conditions can all affect the result. Battery preconditioning for rapid charging is not listed as available for the Frontera Electric, so winter rapid-charging sessions may be more variable than in cars with active route-based battery preconditioning.

Range and Efficiency

Range depends on battery size, trim, temperature, speed, load and driving style. The 44kWh Frontera Electric is generally listed at around 186-190 miles WLTP depending on the exact source and specification. The 54kWh Extended Range version is listed at up to 253 miles WLTP on some trims, with other published figures slightly lower.

WLTP figures are useful for comparing vehicles, but they are not a guarantee of real-world motorway range. EV Database estimates about 145 miles for the 44kWh car and about 180 miles for the 54kWh car in mixed real-world use. In winter, at motorway speeds, or with a heavily loaded car, drivers should allow for lower range. In town and suburban driving, especially in mild weather, the car may get closer to its official efficiency.

Charging at Home

For most Frontera Electric owners, home charging will be the cheapest and most convenient way to run the car. A dedicated 7kW or 7.4kW wallbox is the usual solution for UK homes with single-phase electricity. It gives predictable overnight charging and can usually be paired with off-peak electricity tariffs.

The Frontera Electric supports delayed charging, which is useful if you want the car to start charging during cheaper overnight periods. Rather than plugging in and charging immediately, you can plan charging around your tariff, daily mileage and preferred departure time.

If you have an untethered home wallbox, you will need a Type 2 to Type 2 charging cable. A 32A single-phase Type 2 cable is suitable for typical 7kW or 7.4kW home charging. If you regularly use three-phase AC chargers, or want a cable that can take advantage of the Frontera’s 11kW AC capability, a three-phase Type 2 cable is the more appropriate choice. The car will only draw what it can accept, so a higher-rated compatible cable does not make it exceed its onboard charger limit.

A 3-pin charging cable can be useful, but it should be treated with care. A 3-pin charger is generally best suited as a backup or occasional charging solution, but can be used regularly if a qualified electrician has confirmed the socket and electrical installation are suitable for sustained EV charging. Standard domestic sockets were not primarily designed for long, high-load EV charging sessions, so professional checking is important.

Public Charging

For public AC charging, the Frontera Electric uses the Type 2 connection. Many public AC units are untethered, meaning you bring your own Type 2 cable. This is why carrying a suitable Type 2 cable in the boot is still useful, even if you usually charge at home.

At a 7kW public AC charger, charging speeds will be similar to a home wallbox. At an 11kW three-phase AC post, the Frontera can make use of its standard 11kW capability. At a 22kW AC post, the car will still be limited by its 11kW onboard charger, so it will not charge at the full 22kW rate.

For motorway and longer-distance charging, you will normally use CCS rapid chargers. These have their own tethered cable, so you do not use your Type 2 cable for DC rapid charging. A good routine is to rapid charge from a lower state of charge to around 70-80%, rather than waiting for 100%, because charging speed usually reduces significantly at higher battery percentages.

Vehicle-Specific Features

The Frontera Electric’s passenger-side charging flap is worth remembering when choosing parking bays, particularly at kerbside chargers or tightly spaced rapid-charging hubs. Cable reach varies by charger design, and positioning the car correctly can make the session much easier.

Vauxhall information also confirms that a Mode 3 cable is part of the Frontera Electric charging context. Specification and supplied accessories can vary over time, so it is still sensible to check what is included with your exact vehicle before buying a spare or replacement cable.

The Frontera Electric is a five-seat EV. Vauxhall has also discussed seven-seat availability in relation to Frontera Hybrid versions, but the UK battery-electric Frontera should not be confused with the non-plug-in hybrid models. If your car is a Frontera Hybrid rather than a Frontera Electric, it does not use an external charging cable.

Charging Tips

Choose the right Type 2 cable for your use. For normal UK home charging, a 32A single-phase Type 2 cable is suitable. For regular 11kW public AC charging, choose a three-phase Type 2 cable.
Do not expect 11kW at every home. The car can accept 11kW AC, but most UK domestic installations are single-phase and usually charge at around 7kW or 7.4kW.
Use CCS for rapid charging. Rapid chargers use tethered CCS cables, so your own Type 2 cable is for AC charging only.
Plan winter rapid charging with a buffer. Cold batteries and cold weather can reduce charging speed, particularly where battery preconditioning is not available.
Use delayed charging. Scheduling the car to charge during off-peak periods can reduce running costs if you are on a suitable electricity tariff.
Avoid charging to 100% on every rapid stop unless needed. For long trips, shorter stops to around 70-80% are often more time-efficient.

Frequently Asked Questions

What charging cable does the Vauxhall Frontera Electric use?

The Frontera Electric uses a Type 2 cable for AC charging. For DC rapid charging, it uses the CCS Combo 2 port and the rapid charger’s own tethered cable.

Can the Vauxhall Frontera Electric charge at 11kW?

Yes. The Frontera Electric has a standard 11kW three-phase onboard AC charger. However, many UK homes are single-phase, so most home charging will be around 7kW or 7.4kW unless a suitable three-phase supply is available.

How long does it take to charge the Vauxhall Frontera Electric at home?

Using Vauxhall’s official 20-80% figures, the 44kWh version takes about 4 hours 10 minutes on a 7.4kW wallbox, while the 54kWh version takes about 5 hours 05 minutes on a 7kW wallbox. Full charges take longer.

How fast is Vauxhall Frontera Electric rapid charging?

The car supports DC rapid charging at up to around 100kW. Vauxhall quotes 20-80% rapid charging in about 26 minutes for the 44kWh battery and about 28 minutes for the 54kWh battery. Typical 10-80% estimates are around 31 and 34 minutes respectively.

Is the Vauxhall Frontera Hybrid a plug-in hybrid?

No. The UK Frontera Hybrid is a 48V petrol hybrid, not a plug-in hybrid. It does not charge from an external cable.

What This Means for Drivers

The Vauxhall Frontera Electric should be straightforward to live with if you match your charging routine to the battery version you choose. The 44kWh model is likely to work well for drivers with regular home charging and moderate daily mileage, while the 54kWh Extended Range version provides a larger buffer for longer trips and less frequent charging.

For most UK owners, the practical setup is a 7kW or 7.4kW home wallbox plus a suitable Type 2 cable for untethered home or public AC charging. The standard 11kW onboard charger is a useful advantage when three-phase AC is available, especially at workplace and destination chargers. For longer journeys, CCS rapid charging at up to around 100kW gives respectable charging times, provided expectations are adjusted for temperature, battery state of charge and charger conditions.
