MG 4 Charging Guide: Home Charging, Public Charging and Cable Selection

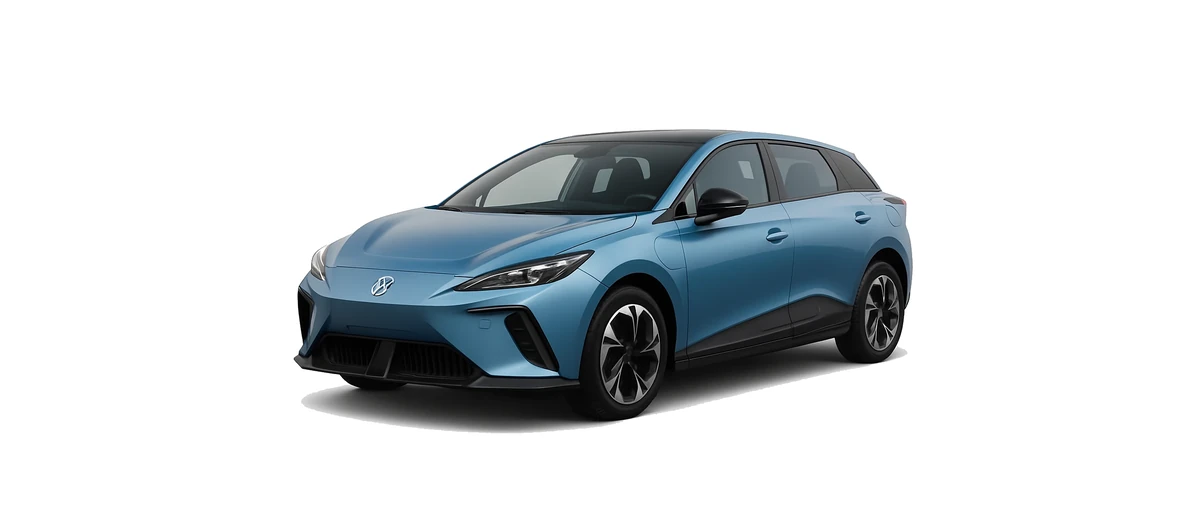

The MG 4, more commonly written by MG as the MG4 EV, is a fully electric 5-door hatchback and one of the UK’s most popular value-focused EVs. It is not a plug-in hybrid: all UK MG4 EV models use a battery-electric powertrain and charge from a Type 2 AC connection or CCS rapid charger.

Charging guidance for the MG 4 needs a little care because there are several battery versions, and the 2026 UK range differs from earlier MG4 EV models. In current UK context, MG sells the updated New MG4 EV in Premium Long Range 64kWh RWD, Premium Extended Range 77kWh RWD and XPOWER 64kWh AWD forms. Earlier Standard Range, Long Range, Extended Range and XPOWER cars remain very relevant for used buyers, but their battery sizes and charging speeds are not all the same. MG4 EV Urban is also a separately positioned model and should not be assumed to share the same charging figures as the standard MG4 EV.

View MG 4 Charging Cables

MG 4 Battery and Charging Specifications

For UK MG4 EV models, the charging connector arrangement is straightforward: the car uses a Type 2 inlet for AC charging and a CCS Combo 2 connection for DC rapid charging. The charge port is positioned at the rear-left of the vehicle.

Current EV Database information for the 2026 Premium Long Range and Premium Extended Range models lists a 6.6kW AC onboard charger. That means that even when connected to a typical UK 7.4kW single-phase home wallbox, the car’s onboard charger is the limiting factor, so real AC charging power is around 6.6kW rather than the full 7.4kW.

DC rapid charging varies by battery version. The current 64kWh Premium Long Range is listed with a maximum DC rate of up to 154kW and a typical 10-80% time of around 25 minutes on a suitable charger in suitable conditions. The 77kWh Premium Extended Range is listed at up to 144kW DC and takes around 40-41 minutes from 10-80%. Older cars, XPOWER versions and the MG4 EV Urban should be checked by exact model year and trim before relying on a single figure.

Battery Options

The most important MG 4 charging question is: which version do you have?

Premium Long Range 64kWh RWD, MY26: this current model uses a 64kWh gross battery, with usable capacity listed at about 61.7kWh. It is described by EV Database as using LFP battery chemistry. Official/EV Database WLTP range is around 280-281 miles, with a real-world estimate of about 220 miles. It is the quicker current MG4 EV for DC charging, with up to 154kW and around 25 minutes for 10-80%.
Premium Extended Range 77kWh RWD, MY26: this version uses a larger 77kWh gross battery, with usable capacity listed at about 74.4kWh. MG and EV Database information point to NMC chemistry. WLTP range is quoted around 338-339 miles depending on source and rounding, with EV Database estimating about 270 miles in real-world use. DC charging is listed at up to 144kW, with a 10-80% time of roughly 40-41 minutes.
XPOWER 64kWh AWD, MY26: MG UK lists an all-wheel-drive XPOWER in the current range. Some published sources quote a 251-mile WLTP figure, but detailed charging figures should be checked from the current MG UK specification for the exact car before making variant-specific assumptions.
Older Standard Range 51kWh cars, MY22-25: these are discontinued as new MG4 EV models but common on the used market. EV Database lists a 51kWh gross / 50.8kWh usable battery, 6.6kW AC charging, and DC charging figures that are lower than current 64kWh Long Range cars.

This variation is why it is best not to describe the MG 4 as having one universal battery size, range or rapid-charge time.

AC Charging Speed

AC charging is what you use at home, at many workplace chargers and at slower public charging posts. On current 2026 Premium Long Range and Premium Extended Range MG4 EV models, the onboard AC charger is listed at 6.6kW.

On a typical UK 7.4kW single-phase home charger, the MG 4 will therefore charge at approximately 6.6kW when conditions allow. EV Database gives an approximate 0-100% AC charging time of around 11 hours for the current 64kWh Long Range and around 13 hours 15 minutes for the 77kWh Extended Range. In day-to-day use, drivers usually top up from a partial state of charge rather than charging from completely empty to full.

For untethered home chargers and many public AC posts, you will need a Type 2 Mode 3 charging cable. A tethered home wallbox already has the cable attached, but many drivers still keep a separate Type 2 cable in the boot for destination chargers.

DC Rapid Charging Speed

DC rapid charging is used for longer journeys and motorway stops. The MG 4 uses the CCS Combo 2 connector for rapid and ultra-rapid charging, so you do not normally use your own cable at these chargers; the cable is attached to the charging unit.

The current 64kWh Premium Long Range is the stronger rapid-charging option in the standard MG4 EV line-up, with up to 154kW and a 10-80% time of about 25 minutes under suitable conditions. The 77kWh Premium Extended Range can travel further per charge, but its 10-80% time is longer at around 40-41 minutes. This is a good example of why a larger battery does not automatically mean a shorter charging stop.

As with all EVs, peak DC charging power is not held for the entire session. Charging is usually fastest when the battery is warm and at a lower state of charge, then slows as it approaches higher percentages. For public rapid charging, planning around a 10-80% window is usually more realistic than expecting regular 0-100% rapid-charge sessions.

Range and Efficiency

MG UK quotes up to around 338 miles WLTP for the current MG4 EV range, which relates to the larger-battery Extended Range version. The 64kWh Premium Long Range is quoted closer to 280-281 miles WLTP, while EV Database estimates real-world range at about 220 miles for the 64kWh version and about 270 miles for the 77kWh version.

Real range depends on speed, weather, tyre choice, payload, road conditions and driving style. Motorway driving in winter will normally reduce range compared with mixed driving in mild weather. Conversely, urban driving and gentle A-road use can be more efficient, particularly where regenerative braking is used effectively.

For most owners, the practical approach is to know your own car’s usual miles-per-kWh figure and treat WLTP as a comparison figure rather than a guaranteed journey distance.

Charging at Home

Home charging is usually the most convenient way to run an MG 4. Plugging in overnight means the car can start most days with the range you need, without relying on public chargers for routine use.

A dedicated Type 2 home wallbox is the preferred solution for regular charging. If the unit is untethered, use a good-quality Type 2 Mode 3 cable suitable for the charger and vehicle. A tethered Type 2 wallbox is also compatible and is convenient if the car is usually parked in the same place.

A 3-pin EV charger is generally best suited as a backup or occasional charging solution, but can be used regularly if a qualified electrician has confirmed the socket and electrical installation are suitable for sustained EV charging. Standard domestic sockets were not all installed with long, high-load EV charging sessions in mind, so professional checking is important before depending on one regularly.

Many MG 4 drivers set charging schedules to take advantage of off-peak electricity tariffs. If you do not need a full battery every morning, setting an everyday target below 100% can also help keep charging predictable and efficient. Always follow MG’s current owner manual guidance for your exact model and battery type.

Public Charging

Public AC chargers are useful at supermarkets, car parks, hotels, workplaces and town-centre locations. These chargers normally require your own Type 2 cable unless the unit is tethered. Because the current MG4 EV’s AC charging rate is listed at 6.6kW for the Premium Long Range and Extended Range, connecting to a higher-rated AC post will not necessarily make the car charge faster.

For long-distance trips, CCS rapid chargers are the better option. The charger’s screen or app will show the delivered power, but the car will manage the charging rate based on battery temperature, state of charge and other conditions. Battery preconditioning is listed as possible by EV Database, although not as automatic via navigation, so owners should check their car’s menus and manual for the best way to prepare the battery before rapid charging.

If you are buying a used MG 4, check whether you have a 51kWh Standard Range, a 64kWh car, a 77kWh Extended Range or an XPOWER. Charging expectations can differ significantly between them.

Vehicle-Specific Features

The MG4 EV is built on SAIC’s Modular Scalable Platform, a dedicated EV architecture. Current Premium Long Range and Premium Extended Range models are rear-wheel drive, while XPOWER is all-wheel drive.

Vehicle-to-load functionality is listed as supported via a Type 2 adapter, with EV Database listing 2.2kW AC output. This can be useful for powering suitable external equipment, but it requires an appropriate MG-compatible Type 2 V2L adapter. It is not the same as powering your home or exporting energy to the grid.

V2G and V2H are not listed as supported for the MG4 EV, so drivers should not buy the car expecting grid export or home backup functionality. A heat pump is also not listed for the standard current MG4 EV in the research sources, and RAC notes it cannot be added. As equipment can vary by market and model year, always check the exact car specification if this feature matters to you.

Charging Tips

Match guidance to your model: do not assume all MG 4 versions share the same battery, range or rapid-charge speed.
Use Type 2 for AC charging: this applies to home wallboxes, workplace units and most destination charging posts.
Use CCS for rapid charging: motorway and high-power public chargers use tethered CCS cables, so you do not need to supply your own DC cable.
Plan around 10-80% on trips: it is usually quicker to stop within the battery’s faster charging window than to wait for the final 20%.
Carry a Type 2 cable: even if you have a tethered home charger, a boot cable is useful for public AC charging.
Check older cars carefully: used MG4 EV Standard Range, Long Range, Extended Range and XPOWER versions may have different charging data from current MY26 models.

Frequently Asked Questions

What charging cable does the MG 4 use?

The MG 4 uses a Type 2 connector for AC charging. For untethered home chargers and many public AC posts, you need a Type 2 Mode 3 cable. DC rapid charging uses the CCS Combo 2 connector with the cable attached to the charger.

Can the MG 4 charge at 11kW AC?

For current MY26 Premium Long Range and Premium Extended Range data, EV Database lists 6.6kW AC charging. Do not assume 11kW AC charging unless your exact model year and specification confirms it.

How long does the MG 4 take to charge at home?

On a typical UK 7.4kW home charger, current 6.6kW AC MG4 EV models are limited by the onboard charger. Approximate 0-100% times are around 11 hours for the 64kWh Long Range and around 13 hours 15 minutes for the 77kWh Extended Range.

How fast does the MG 4 rapid charge?

The current 64kWh Premium Long Range is listed at up to 154kW DC and around 25 minutes from 10-80%. The 77kWh Premium Extended Range is listed at up to 144kW DC and around 40-41 minutes from 10-80%. Other versions may differ.

Does the MG 4 support V2L?

Yes, V2L is listed as supported via an appropriate Type 2 adapter, with 2.2kW AC output listed by EV Database. It should not be confused with V2G or V2H, which are not listed as supported.

What This Means for Drivers

The MG 4 is easy to live with if you match your charging setup to the exact version you own. For most UK drivers, a Type 2 home wallbox and a Type 2 Mode 3 cable will cover routine charging, while CCS rapid chargers handle longer journeys.

The key point is that the MG 4 is not one single charging specification. The current 64kWh Premium Long Range is the faster rapid-charging choice, while the 77kWh Premium Extended Range offers more range but longer rapid-charge stops. Used 51kWh and earlier 64kWh or 77kWh models should be checked individually. Once you know your battery and onboard charger, choosing the right cable and planning charging stops becomes much simpler.
