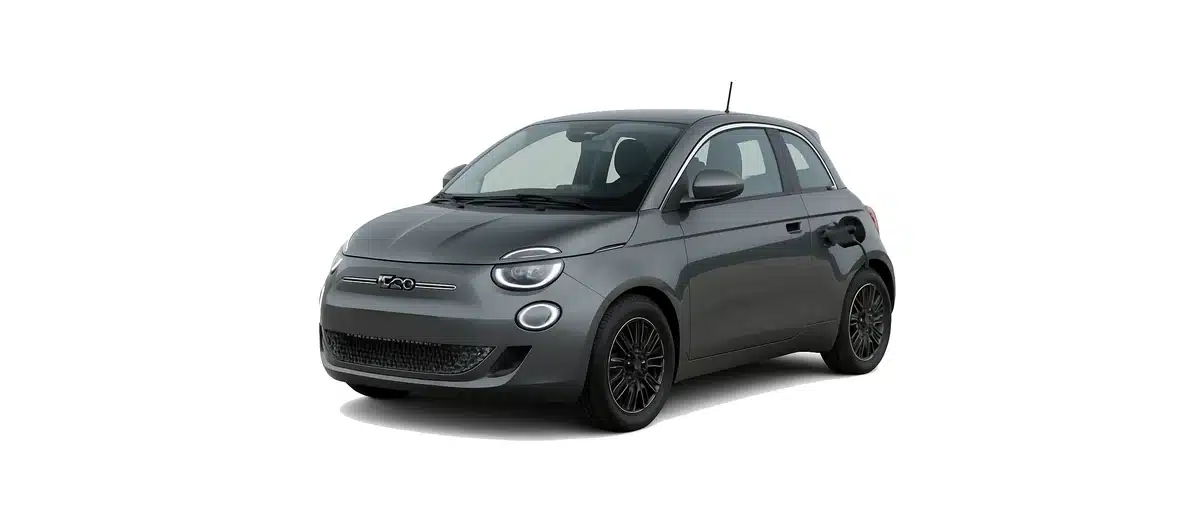

Fiat 500e (2020-) Charging Guide: Home Charging, Public Charging and Cable Selection

The new-generation Fiat 500e, also known as the Fiat 500 Electric, is a compact battery-electric car designed primarily for city and suburban use, with enough charging flexibility to suit many UK drivers. Launched in the UK from late 2020, it should not be confused with the earlier North American Fiat 500e sold before this generation. UK and European 2020-on Fiat 500e models use Type 2 AC charging and CCS Combo 2 DC rapid charging.

One of the most important points for owners is that there are two main battery versions. The smaller 24 kWh model is a city-focused car with shorter range and a lower DC rapid-charging limit, while the 42 kWh version offers more range and faster rapid charging. Both can use an 11 kW AC supply where available, but most UK homes are single phase, so a 7.4 kW wallbox is usually the practical home-charging maximum.

View Fiat 500e Charging Cables (2020-) Charging Cables

Fiat 500e (2020-) Battery and Charging Specifications

The Fiat 500e is a full battery-electric vehicle, not a plug-in hybrid or mild hybrid. UK cars from this generation are fitted with a Type 2 AC inlet for home and destination charging, plus a CCS Combo 2 connection for DC rapid charging. The charge port is positioned on the right-side rear quarter on UK and European models.

Specification	Fiat 500e 24 kWh	Fiat 500e 42 kWh
Battery size	23.8 kWh nominal, around 21.3 kWh usable	42 kWh nominal, around 37.3 kWh usable
Official WLTP range	Up to 118 miles	Typically 186-199 miles depending on specification
Estimated real-world range	Around 80 miles	Around 145 miles
AC charging	Type 2, up to 11 kW on three-phase AC	Type 2, up to 11 kW on three-phase AC
Typical UK home charging	Up to around 7.4 kW single phase	Up to around 7.4 kW single phase
DC rapid charging	CCS, up to 50 kW	CCS, up to 85 kW

Battery Options

The 24 kWh version uses a 23.8 kWh nominal battery, with a usable capacity of around 21.3 kWh. Fiat UK rounds this to 24 kWh and quotes up to 118 miles WLTP. In practice, this version is best suited to shorter daily routes, urban driving, commuting and regular top-ups at home or at destinations.

The 42 kWh version is the more flexible option for drivers who need longer range. Fiat lists official WLTP range figures of around 186 to 199 miles depending on trim, body style and specification. Independent real-world estimates are lower, but the larger battery gives the car a much more relaxed range buffer for mixed driving and occasional longer trips.

AC Charging Speed

Both battery versions support up to 11 kW AC charging through a Type 2 connection. However, the 11 kW figure normally requires a three-phase AC supply, which is common in some workplaces and public destination chargers but not in most UK homes. Most domestic properties have a single-phase supply, so a 7.4 kW home wallbox is usually the most realistic and practical option.

On a 7.4 kW home charger, the 24 kWh Fiat 500e can typically charge from empty to full in around three and a half hours. On an 11 kW three-phase AC charger, this may be closer to two and a half hours. The 42 kWh model takes longer because of its larger battery: around six hours on a 7.4 kW single-phase wallbox, or roughly four to four and a quarter hours on an 11 kW three-phase supply.

For cable selection, a Type 2 charging cable is the correct AC cable for UK and European 2020-on Fiat 500e models. A 32 amp Type 2 cable is a practical choice for home and public AC charging, with three-phase capability worth considering if you regularly use 11 kW public or workplace charging points.

DC Rapid Charging Speed

DC rapid charging is where the two Fiat 500e battery versions differ most clearly. The 24 kWh model supports CCS rapid charging at up to 50 kW. Fiat quotes a 0-80% time of around 30 minutes, while independent 10-80% estimates under favourable conditions are in the mid-20-minute region.

The 42 kWh model can charge at up to 85 kW on a suitable CCS rapid charger. Fiat quotes around 35 minutes for 0-80%, with independent 10-80% estimates being shorter under ideal conditions. It is important not to assume that every Fiat 500e charges at 85 kW: that higher peak applies to the 42 kWh version, not the 24 kWh version.

As with most electric cars, the fastest part of a rapid charge is usually the middle of the battery. Charging beyond 80% on a DC rapid charger often slows down noticeably, so for longer journeys it is usually more efficient to plan stops around the 10-80% charging window rather than waiting for 100% at each stop.

Range and Efficiency

The official WLTP range figures give a useful comparison between models, but they are not a guarantee of motorway or winter range. The 24 kWh Fiat 500e is quoted at up to 118 miles WLTP, with real-world estimates closer to around 80 miles. Cold weather, higher speeds, hills, heavy rain and frequent cabin heating can reduce the available range.

The 42 kWh Fiat 500e is officially rated at up to 186-199 miles depending on version, with real-world estimates around 145 miles for the hatchback. That makes it more suitable for drivers who regularly leave town or want fewer charging stops. Even so, motorway driving at sustained speed will use energy more quickly than low-speed urban driving, where the 500e is at its most efficient.

Charging at Home

For most UK owners, home charging will be the most convenient and cost-effective way to run a Fiat 500e. A dedicated Type 2 wallbox allows the car to be plugged in overnight and ready for the next day. A 7.4 kW single-phase charger is likely to suit most households, even though the car can accept up to 11 kW AC when connected to a three-phase supply.

An untethered wallbox requires you to use your own Type 2 charging cable, while a tethered unit has a cable permanently attached. Untethered chargers keep the installation tidier and allow the cable to be replaced separately if needed. Tethered chargers are convenient because the cable is always ready to plug in.

A 3-pin charger is generally best suited as a backup or occasional charging solution, but can be used regularly if a qualified electrician has confirmed the socket and electrical installation are suitable for sustained EV charging. It will charge much more slowly than a wallbox, so it is not usually the best match for drivers who need regular full recharges, particularly with the 42 kWh model.

Public Charging

Public AC chargers are useful at supermarkets, town-centre car parks, hotels, workplaces and leisure destinations. Many use untethered Type 2 sockets, so you will need to bring your own Type 2 cable. The Fiat 500e can also use tethered Type 2 AC chargers where the cable is already attached to the unit.

For faster journey charging, use CCS rapid chargers. The cable is always tethered on DC rapid chargers, so you do not need to provide your own DC cable. Owners of the 42 kWh model can make better use of higher-powered CCS chargers than owners of the 24 kWh model, but the car still peaks at up to 85 kW rather than the 150-250 kW speeds available on some larger EVs. The 24 kWh version is limited to up to 50 kW DC.

Vehicle-Specific Features

The 2020-on Fiat 500e uses a 400 V electrical architecture and is available in hatchback and convertible body styles, with some earlier UK-market versions also offered in 3+1 form depending on trim and year. Its key charging feature is the combination of Type 2 AC charging and CCS rapid charging in a compact city car.

Based on the data reviewed, the Fiat 500e is not listed with a heat pump, battery preconditioning, vehicle-to-load, vehicle-to-grid or vehicle-to-home capability. That means owners should plan rapid charging in a conventional way, allowing for slower charging in cold conditions and not relying on bidirectional power features.

Charging Tips

Check which battery your car has before planning longer journeys, as the 24 kWh and 42 kWh versions have very different range and rapid-charging limits.
Use a 7.4 kW Type 2 home wallbox as the practical benchmark for most UK properties.
Choose a Type 2 cable for public AC chargers; do not use Type 1 cable advice for the UK 2020-on Fiat 500e.
On rapid chargers, aim for 10-80% stops where possible, as charging usually slows above 80%.
For the 24 kWh model, treat rapid charging as useful support rather than the main charging method for everyday use.
For the 42 kWh model, plan longer trips around CCS chargers, but remember the car’s peak rate is up to 85 kW.

Frequently Asked Questions

What charging cable does the Fiat 500e use?

The UK and European 2020-on Fiat 500e uses a Type 2 cable for AC charging. For DC rapid charging, it uses CCS Combo 2, but rapid chargers have their own tethered cables.

Can the Fiat 500e charge at 11 kW at home?

Only if the property has a suitable three-phase supply and compatible charging equipment. Most UK homes are single phase, so charging at around 7.4 kW is more typical.

Does every Fiat 500e rapid charge at 85 kW?

No. The 42 kWh version can accept up to 85 kW DC, while the 24 kWh version is limited to up to 50 kW DC.

How long does the Fiat 500e take to charge at home?

As a guide, the 24 kWh version takes around three and a half hours on a 7.4 kW wallbox, while the 42 kWh version takes around six hours. Exact times vary with battery temperature, state of charge and charger output.

Is the Fiat 500e suitable for long journeys?

The 42 kWh model is much better suited to occasional long journeys than the 24 kWh version. The 24 kWh car is more city-focused, so motorway trips require more careful planning and more frequent charging stops.

What This Means for Drivers

The Fiat 500e is straightforward to charge, but the right expectations depend heavily on the battery fitted. The 24 kWh version works best as an urban EV topped up at home or at destination chargers, while the 42 kWh version offers a more useful range buffer and faster CCS charging for longer trips. For most UK owners, a Type 2 cable and a 7.4 kW home wallbox will cover the majority of everyday charging needs.

Looking for a Charging Cable for Fiat 500e Charging Cables (2020-)?

If you need a compatible cable for home or public AC charging, choose a Type 2 charging cable suitable for the 2020-on UK Fiat 500e, taking into account whether you want single-phase everyday charging or three-phase capability for 11 kW AC points.
